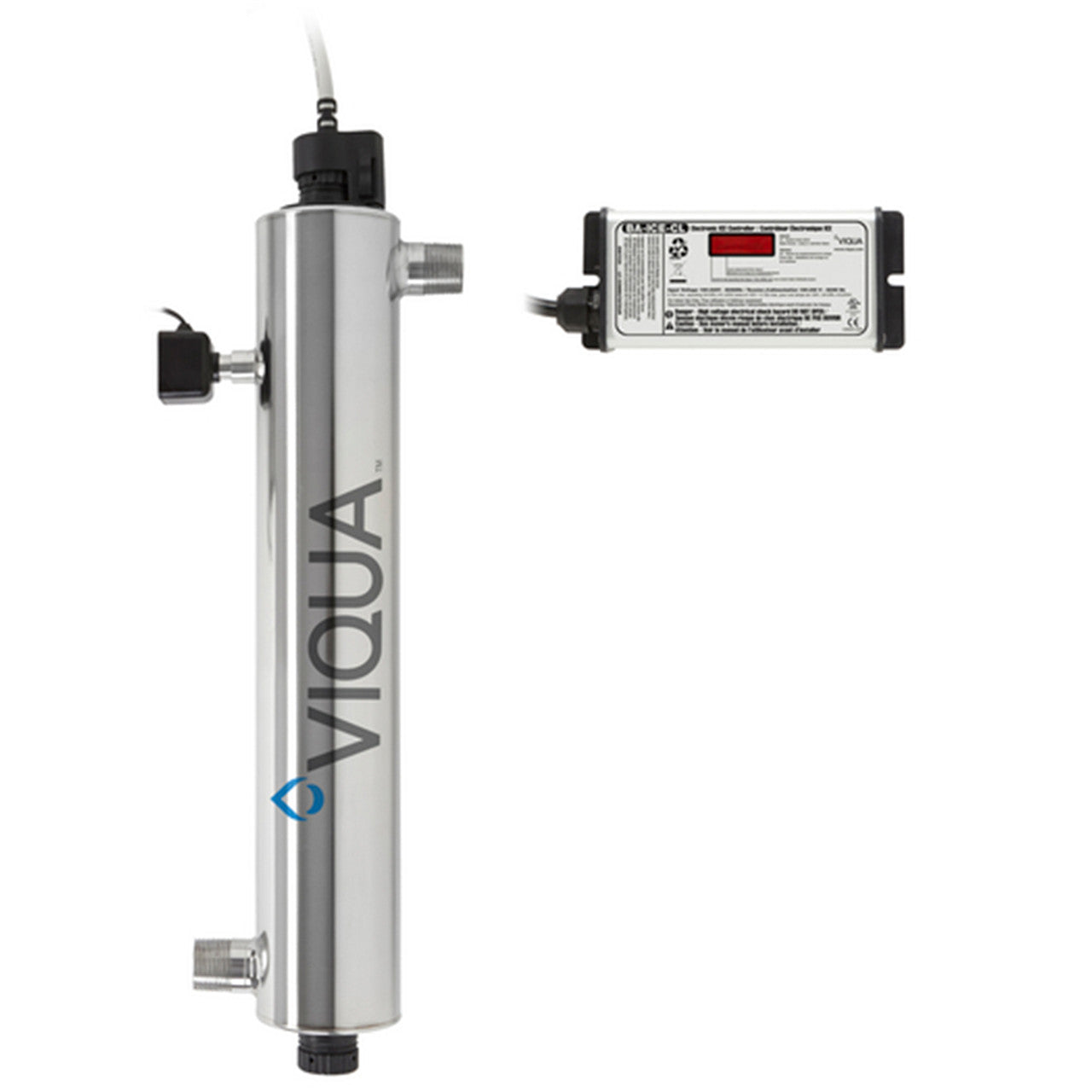

Viqua VH410M UV System with Sensor 18 GPM 3/4" and 1" NPT
- Part#
- VH410M
Description
Upgrade from the VIQUA VH410 to the VH410M for continuous feedback about your system's performance via the UV sensor. Rated at 18 GPM, the VH410M is used for large homes (4-7 Bedrooms) and light commercial applications. Capable of 100-240V, 50-60Hz
RELIABLE: State of the art UV sensor technology to give you real-time performance feedback, for added peace of mind
APPLICATION: Ultraviolet sterilizer recommended for Flow Rates up to 18 GPM (68 lpm) larger homes or light commercial applications
NO RISK: 10-yr warranty on VIQUA chamber, 3-yrs on electrical and hardware, and 1-yr warranty on lamps, sleeves & sensors
SAFEGUARD: Protection from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium
REPLACEMENT PARTS
Lamp (S410RL-HO) - Replace every 12 months
Quartz Sleeve (QSO-410) - Replace every 24 months or as needed
Lamp/Sleeve Combo Kit (QL-410)
Features
2X OUTPUT: 2X the output of standard lamps
END-OF-LIFE TIMER: Counts down the days until annual lamp replacement
UV SENSOR: Monitors/indicates UV dose intensity
Specs
- Flow Rate: 18 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 60W
- Overall Dimensions: 23.5" x 3.5"
- Inlet Dimensions: 3/4" FPT and 1" MPT
- Outlet Dimensions: 3/4" FPT and 1" MPT
- Electrical Plug Types Available:
- B – North & Central America, Japan (NEMA 5-15P)
- F – Europe, Brazil, Russia (CEE 7/7)
- G – UK, Ireland, Singapore, Hong Kong (BS 1363)
- I – Australia, New Zealand, Argentina (AS 3112)
Warranty
- Chamber: 10 Years
- Electric: 3 Years
- Lamp & Sleeve: 1 Year
