VIQUA UVMAX 650656 PRO20 Model UV System (120V, 60Hz)

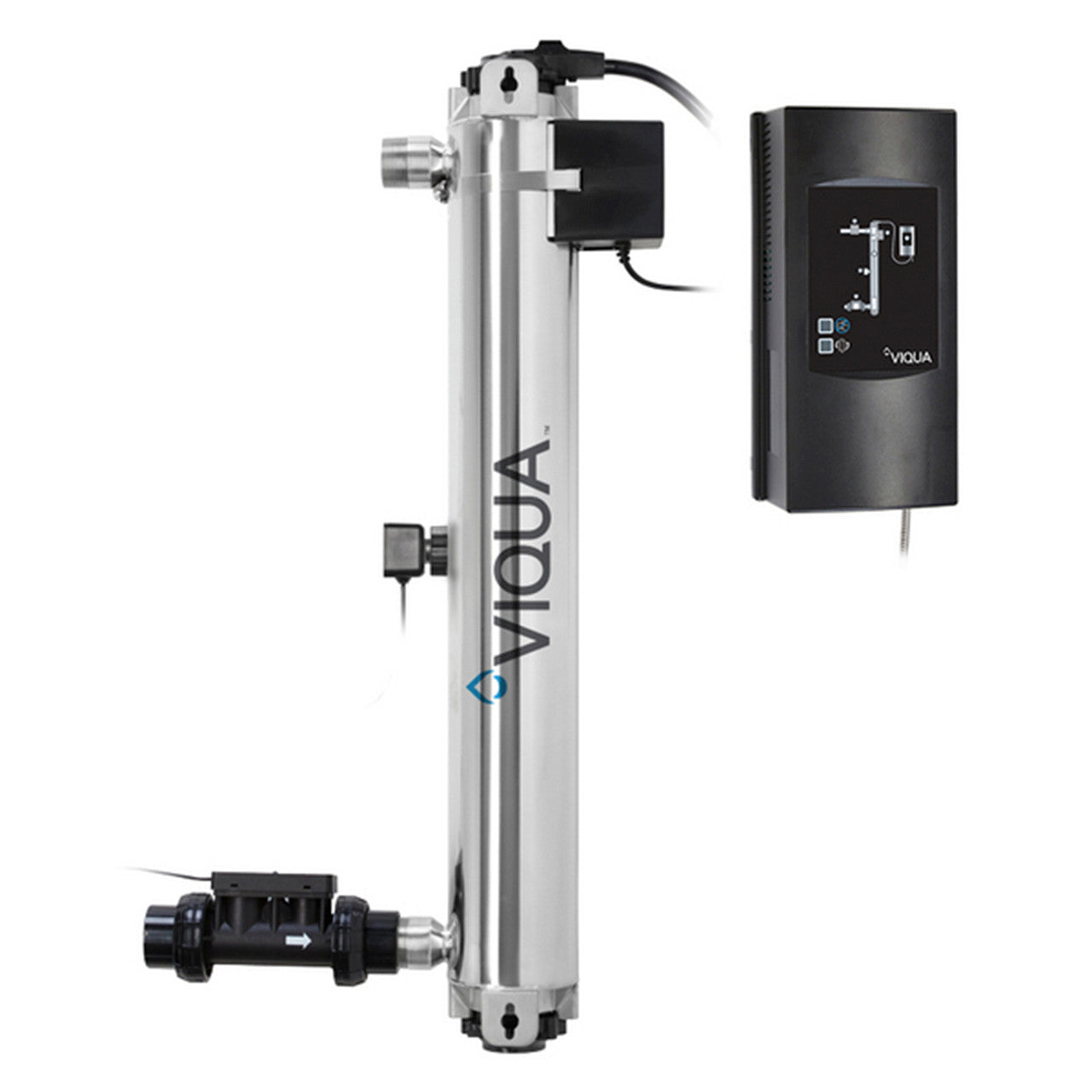

VIQUA PRO20 Model 20 GPM UV System - (650653)

Part#
650653
$2,359.00 $2,985.00
(You save $626.00)
Quantity:

Description

The VIQUA Pro20 UV system is NSF Class A certified to treat flow rates of up to 20 GPM. This means that for suitable applications, such as large home (4-7 Bedrooms) filtration and commercial use, the Pro20 will disinfect pathogenic bacteria, viruses, Cryptosporidium or Giardia to safe levels. The Pro20 features an amalgam lamp that provides higher strength and up to 2 years of lamp life. The Pro20 is also capable of 100-240V, 50-60Hz.


REPLACEMENT PARTS

PDF icon  Quartz Sleeve (602975) - Replace every 24 months or as needed

PDF icon  Lamp (602855) - Replace every 12 months

PDF icon  Sleeve/Lamp Combo Kit (602850-102) - Replace every 24 months

Features

lightwise-logo.jpgLightWise Technology: Dims the lamp under no flow conditions.
– Ease of Maintenance: Up to 60% less maintenance
– Lower Temperature: 30% lower temperature in no flow periods
– Efficient: Estimated 30% energy savings

nsf.pngNSF CLASS A: Meets NSF 55 Class A standards for recommended flow rate

2xlife.png2X LAMP LIFE: 2X the lamp life of standard lamps

4xoutput.png4X OUTPUT: 4X the output of standard lamps

cooltouch.pngCOOLTOUCH FAN: Prevents water overheating in the UV chamber

flowmeter.pngFLOW METER: Calculates real-time UV dose for a particular flow

sensor.pngUV SENSOR: Monitors/indicates UV dose intensity

led.pngLED STATUS MONITOR: Displays system components’ status and functionality

eol.pngEND-OF-LIFE TIMER: Counts down the days until annual lamp replacement

Specs

  • Flow Rate: 20 Gallons Per Minute
  • Application: Point-of-Entry
  • Power: 100-240V   50-60Hz   160W   N. American Plug
  • Chamber Dimensions: 31" x 4"
  • Inlet Dimensions: 1-1/4" MPT and 1" FPT
  • Outlet Dimensions: 1-1/4" MPT and 1" FPT
  • Electrical Plug Types Available:
    • B – North & Central America, Japan (NEMA 5-25P)
    • F – Europe, Brazil, Russia (CEE 7/7)

Downloads

PDF iconVIQUA Pro20 UV System Manual

PDF iconVIQUA Pro20 Lightwise Spec Sheet

PDF iconVIQUA Pro20 Spec Sheet

PDF iconLamp and Sleeve Replacement Instructions

PDF iconVIQUA Pro20 Sensor Replacement Instructions
