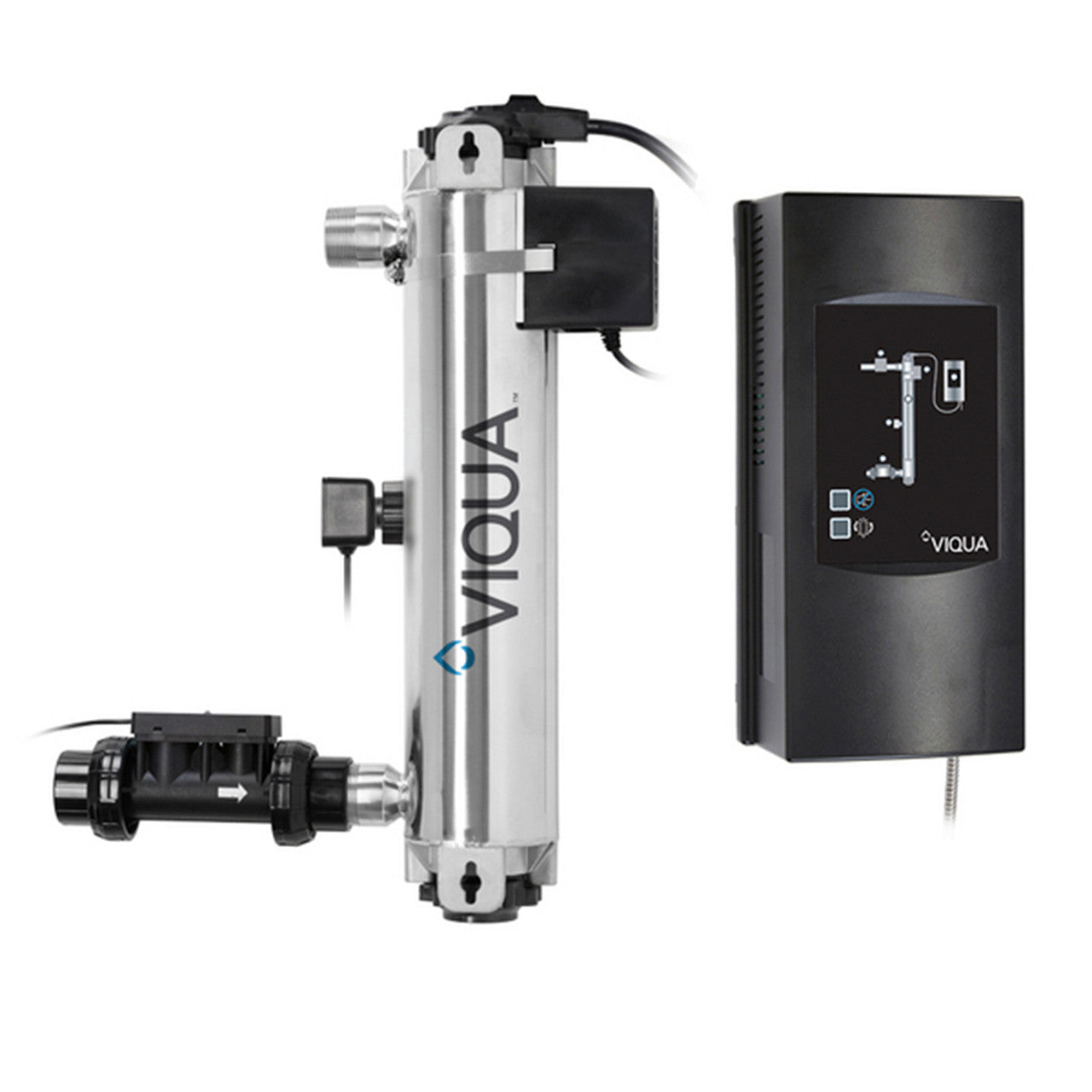

Viqua 650647 PRO10 UV System 10 GPM NFS 55 Class-A Certified

VIQUA PRO10 Model 10 GPM UV System – NFS Class A Certified with LightWise Lamp Dimmer (650647)

The VIQUA Pro10 line of UV systems is a premier choice for both whole-house and light commercial applications. Updated with the latest state-of-the-art accessories for enhanced performance, the Pro10 is one the safest and most dependable UV systems on the market.

Certified to NSF/ANSI Standard 55 Class A, the Pro10 is a Point of Entry (POE) ultraviolet sterilizer designed to treat up to 10 gpm@40mJ/cm² and features an amalgam lamp that provides higher strength as well as up to 2 years of lamp life. The VIQUA Pro10 is capable of 100-240V, 50-60Hz, and is the smallest member of Trojan UVMax Pro Series product line.

NO RISK: 10-year warranty on VIQUA reaction chamber, 5 years on electrical parts, and 1-year warranty on lamp.

REPLACEMENT PARTS

  Lamp (602854) - Replace every 24 months
 Quartz Sleeve (602974) - Replace every 24 months or as needed
  Lamp/Sleeve Combo Kit (602850-101)

Features

LightWise Technology: Dims the lamp under no flow conditions.
– Ease of Maintenance: Up to 60% less maintenance
– Lower Temperature: 30% lower temperature in no flow periods
– Efficient: Estimated 30% energy savings

NSF CLASS A: Meets NSF 55 Class A standards for flow rates up to 10 GPM

4X OUTPUT: 4X the output of standard lamps

2X LAMP LIFE: 2X the lamp life of standard lamps

FLOW METER: Calculates real-time UV dose for a particular flow

LED STATUS MONITOR: Displays system components’ status and functionality

COOLTOUCH FAN: Prevents water overheating in the UV chamber

UV SENSOR: Monitors/indicates UV dose intensity

END-OF-LIFE TIMER: Counts down the days until annual lamp replacement

Specs

• Flow Rate: 10 Gallons Per Minute
• Application: Point-of-Entry
• Power: 100-240V   50-60Hz   120W   N. American Plug
• Chamber Dimensions: 22" x 4"
• Inlet Dimensions: 1-1/4" MPT or 1" FPT
• Outlet Dimensions: 1-1/4" MPT or 1" FPT
• Electrical Plug Types Available:
  • B – North & Central America, Japan (NEMA 5-25P)
  • F – Europe, Brazil, Russia (CEE 7/7)

Warranty

• Chamber: 10 Years
• Electric: 5 Years
• Lamp & Sleeve: 1 Year

Downloads

VIQUA Pro10 Owner's Manual

VIQUA Pro10 Spec Sheet

VIQUA Pro10 Lightwise Spec Sheet

VIQUA Pro10 Sensor Replacement Instructions

VIQUA Pro10, 20 & 30 Engineering Submittal Packet

Lamp and Sleeve Replacement Instructions
