Viqua PRO24-186 UV Sterilizer USEPA 4-Log Validated 24 GPM 660086-R
- Part#
- 660086-R
Description

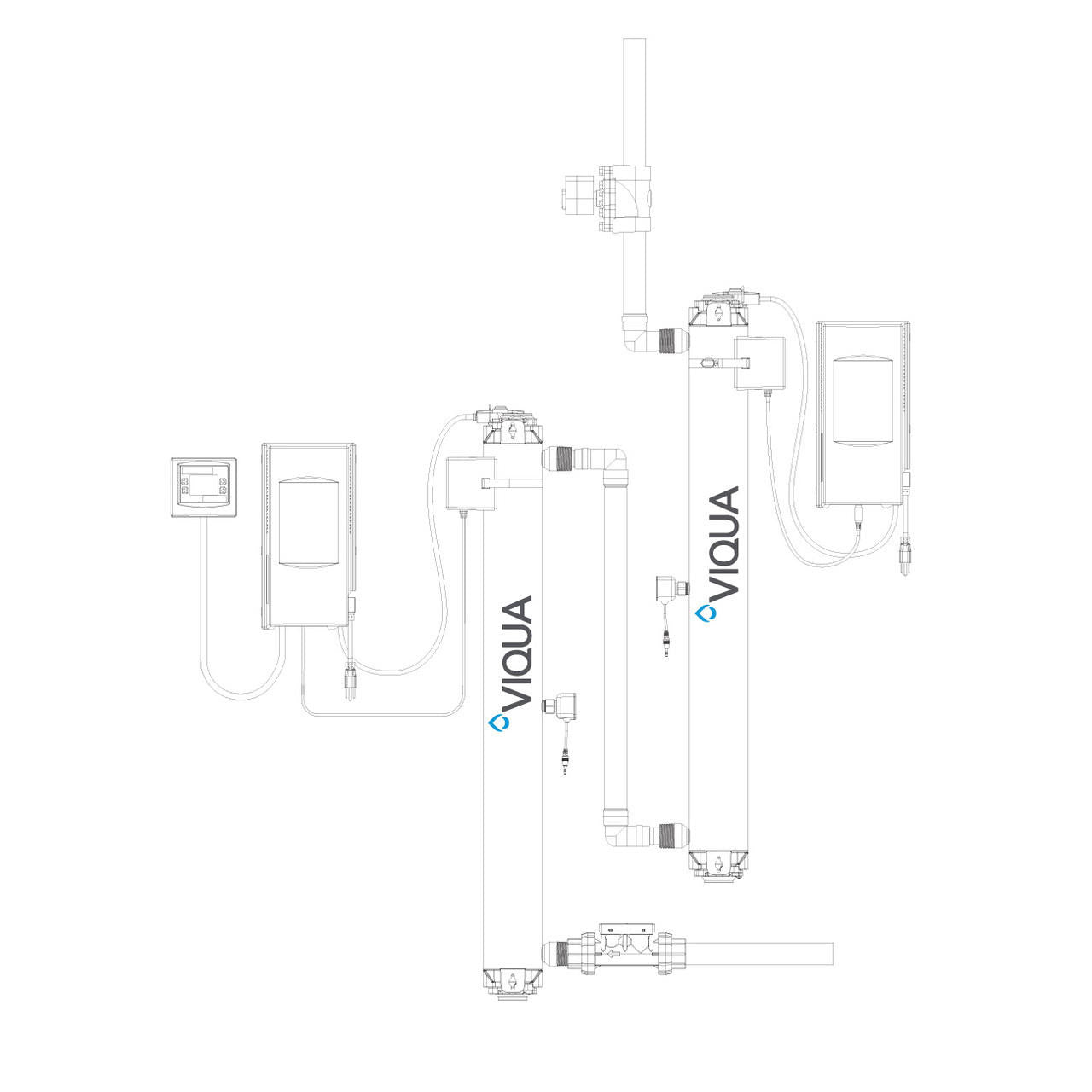

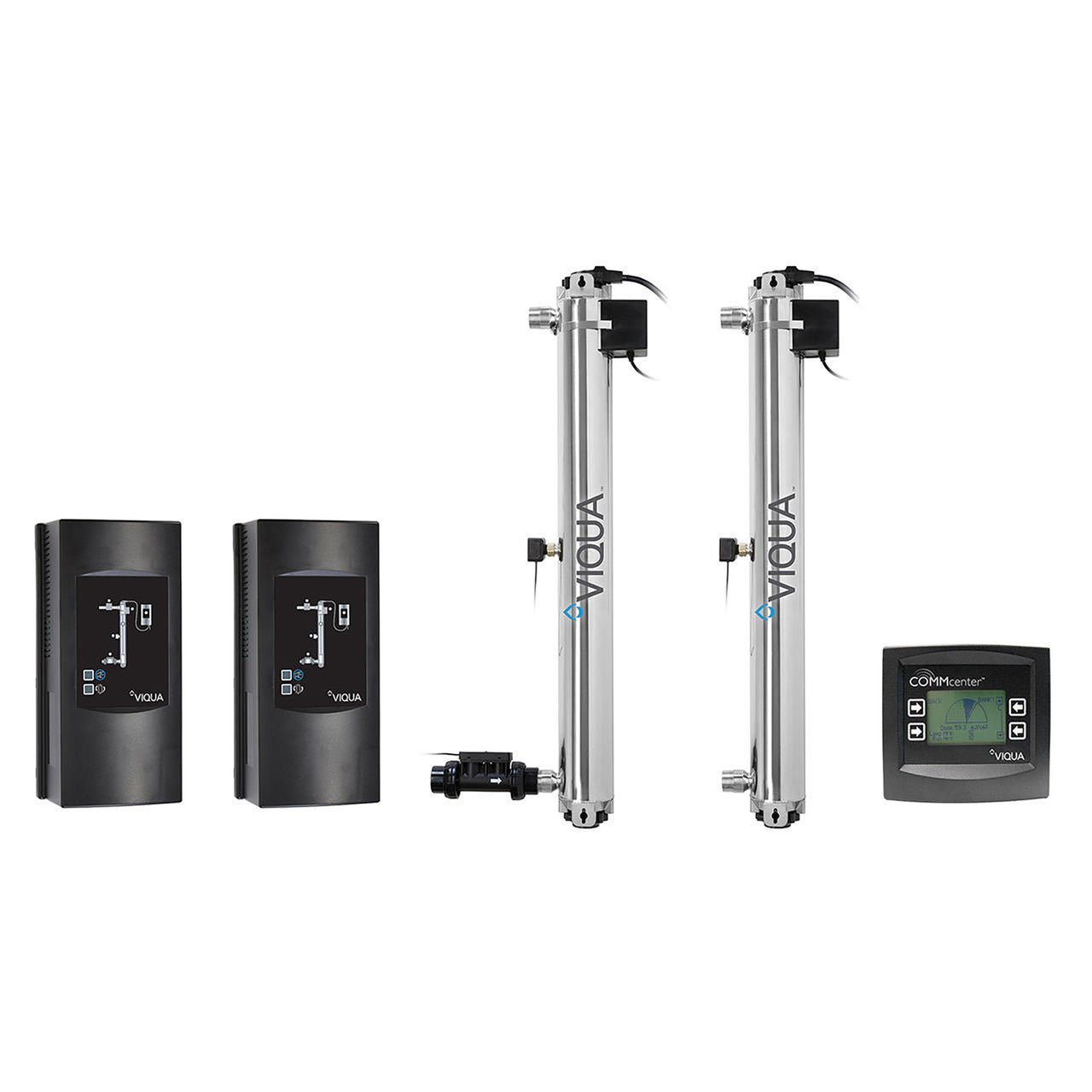

The Viqua Pro24-186 (660086-R) takes pro level safety to the next level thanks to 2 chamber ultra-high output Viqua UV lamps featuring Cool Touch fan technology. The Pro24-186 allows flow rates up to 24 GPM with a 3rd party validation for Adenovirus (4-log virus) giving you the peace of mind you need. The included UV sensor and flow meter will provide constant feedback on UV disinfection and system performance. This data can be constantly recorded on a micro-SD card or connected directly to a PC with free software available for analyzing system performance. Optional solenoid valve will ensure water shuts off in the event water is not being disinfected properly. This system makes complying with Ground Water Rule and LT2 regulations simple. The Pro24-186 features an amalgam lamp that provides higher strength and up to 2 years of lamp life. Capable of 100-240V, 50-60Hz. (See downloadable spec sheet below for more details).
REPLACEMENT PARTS
2x Lamp (602856) - Replace every 24 months
2x Quartz Sleeve (602976) - Replace every 24 months or as needed
2x Lamp/Sleeve Combo Kit (602850-103)
Features
LightWise Technology: Dims the lamp under no flow conditions.
– Ease of Maintenance: Up to 60% less maintenance
– Lower Temperature: 30% lower temperature in no flow periods
– Efficient: Estimated 30% energy savings
USEPa 4 Log: 3rd party validated for Adenovirus (4-log virus)
COOLTOUCH FAN: Prevents water overheating in the UV chamber
LED STATUS MONITOR: Displays system components’ status and functionality
FLOW METER: Calculates real-time UV dose for a particular flow
END-OF-LIFE TIMER: Counts down the days until annual lamp replacement
UV SENSOR: Monitors/indicates UV dose intensity
2X LAMP LIFE: 2X the lamp life of standard lamps
4X OUTPUT: 4X the output of standard lamps
Ideal Applications
- Packaged Ice Companies
- Restaurants
- Camps
- Schools
- Bed & Breakfast
- Rest Areas
- Community Centers
- Churches
- Dairy Farms
- Swine Farms
- Poultry Farms

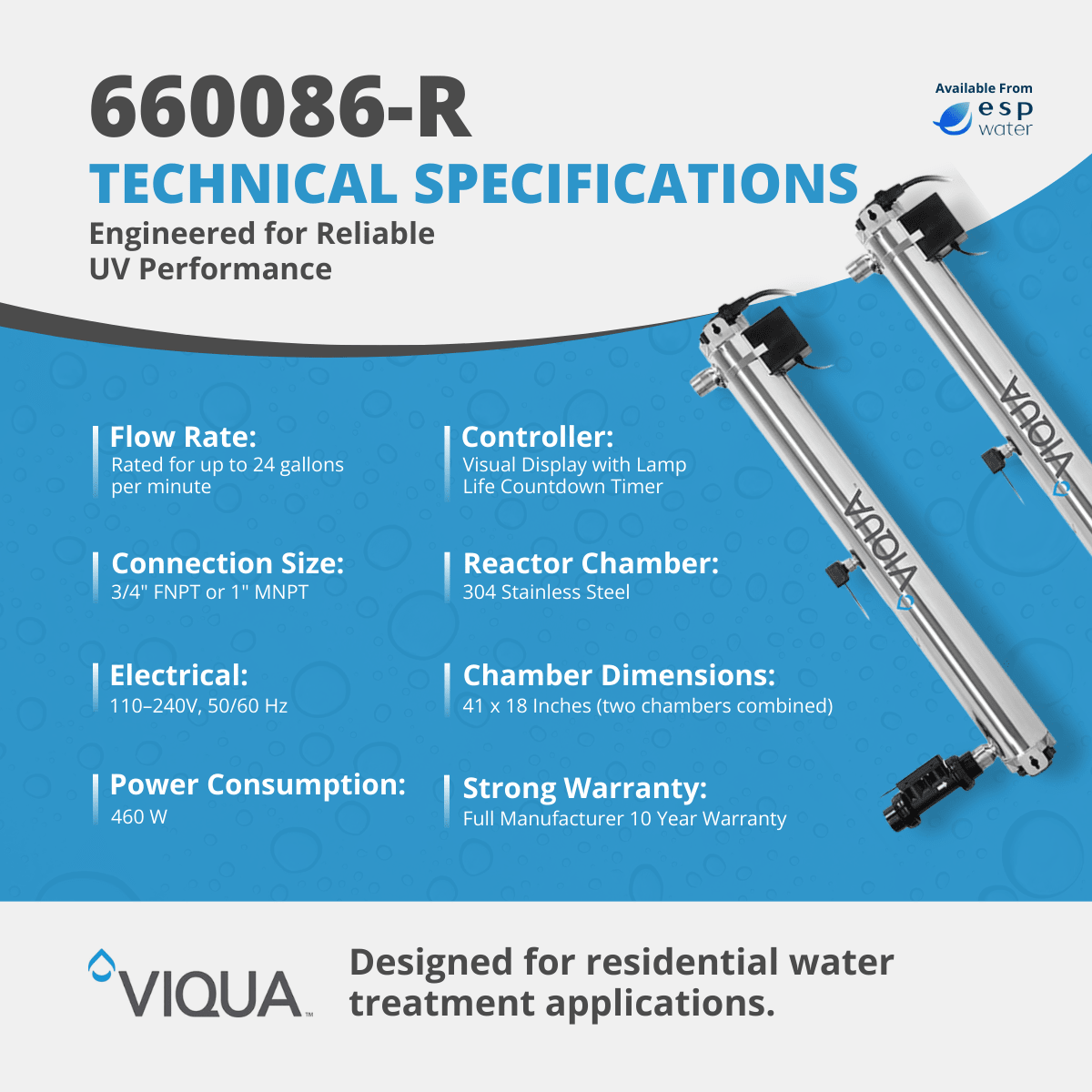

Specs
- Flow Rate: 24 Gallons Per Minute
- Power: 100-240V 50-60Hz 460W N. American Plug
- Application: Point-of-Entry

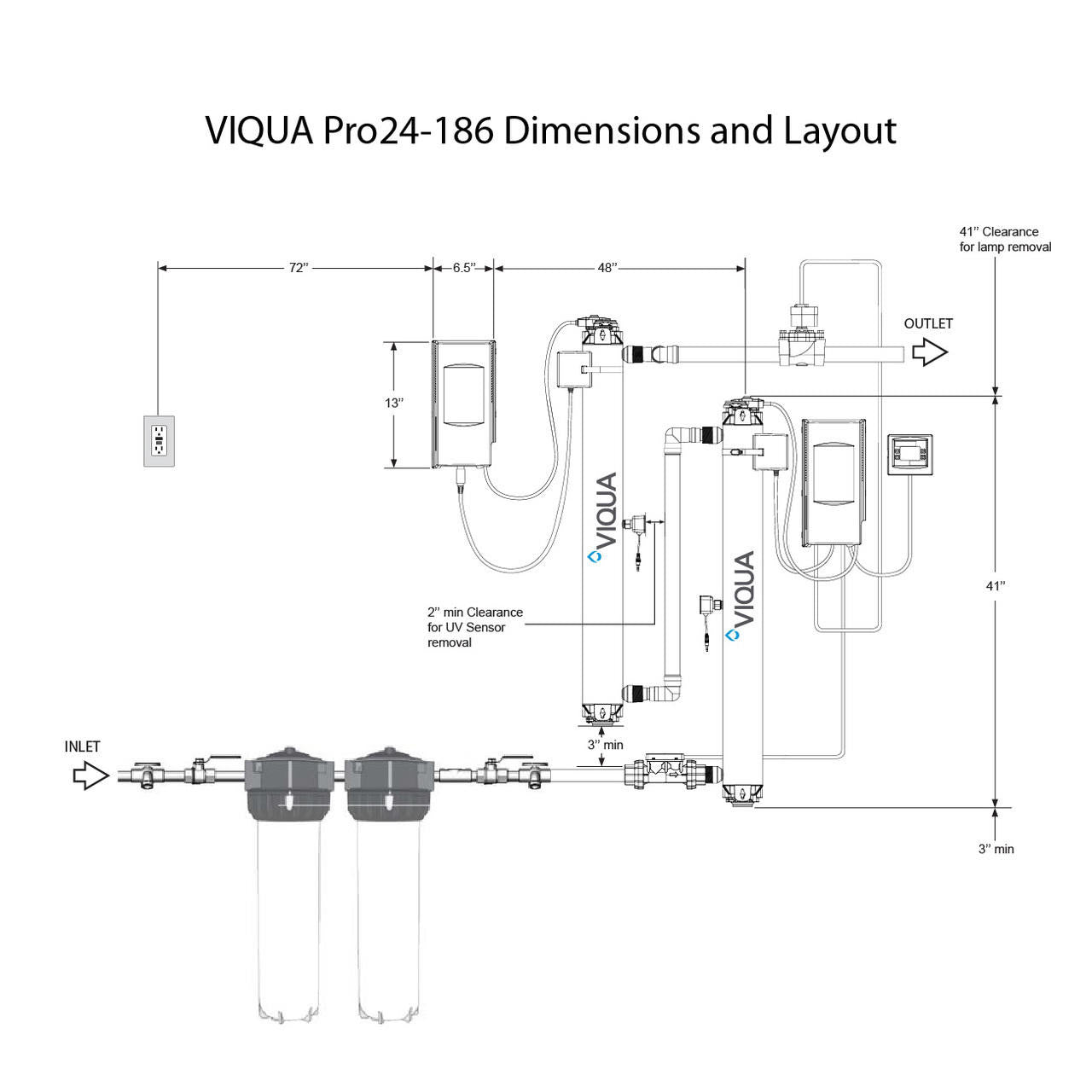

- Chamber Dimensions: 41" x 18"

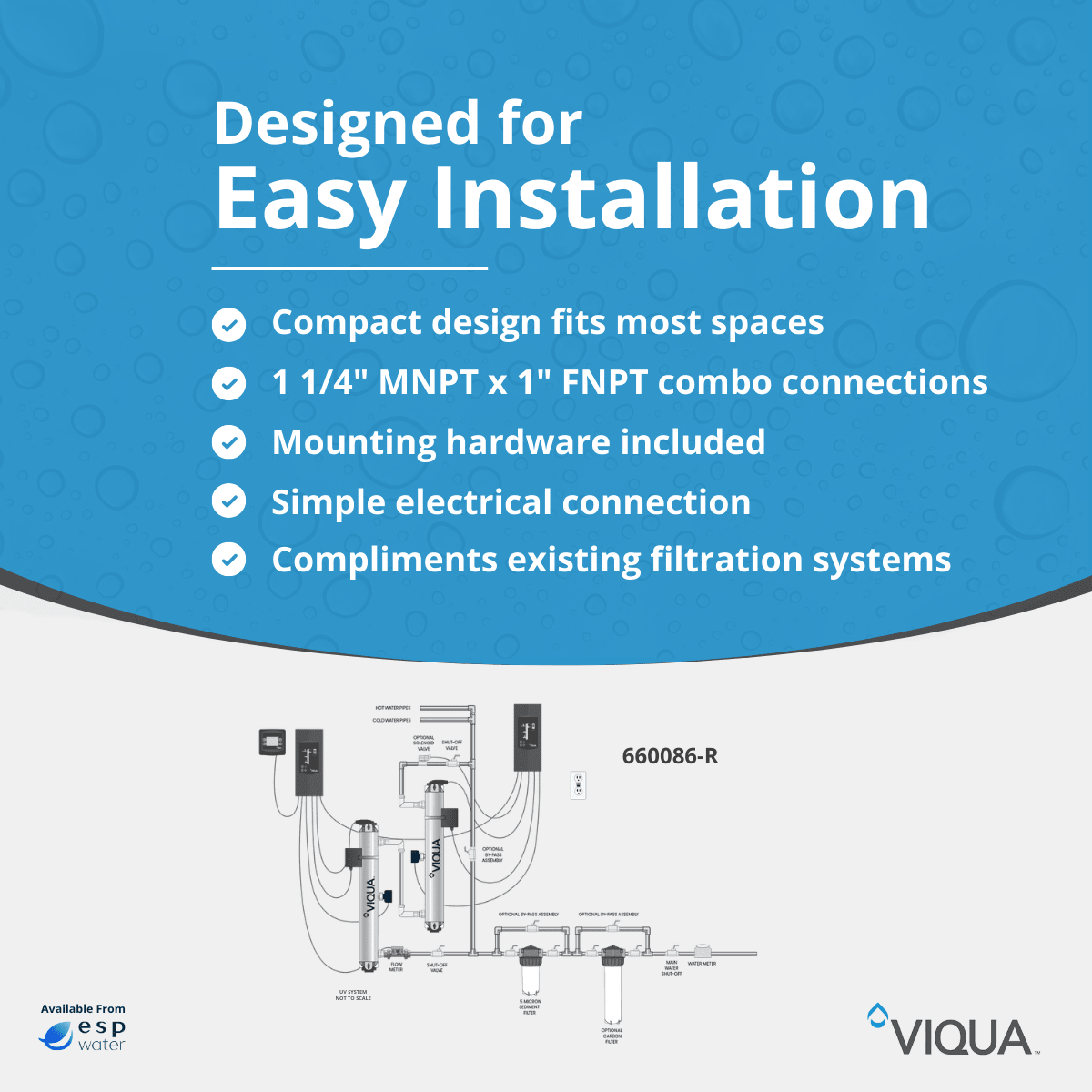

- Inlet Dimensions: 1 1/4"" MPT
- Outlet Dimensions: 1" FPT
- Electrical Plug Types Available:
- B – North & Central America, Japan (NEMA 5-25P)
- F – Europe, Brazil, Russia (CEE 7/7)
Warranty
- Chamber: 10 Years
- Electric: 3 Years
- Lamp & Sleeve: 1 Year
Downloads
VIQUA PRO24-186 UV System Owner's Manual
Lamp and Sleeve Replacement Instructions
VIQUA Pro24-186 Sensor Replacement Instructions
